Panel Mount Plunger Roller Horizontal Limit Switch
-
Design Flexibility
-
Reliable Action
-
Enhanced Life
Product Description
The Panel Mount Plunger Roller Horizontal Limit Switch integrates the advantages of the panel installation design and the roller design. It has a sturdy casing that can withstand harsh environments and is more durable. The roller design enables it to meet many switch applications.

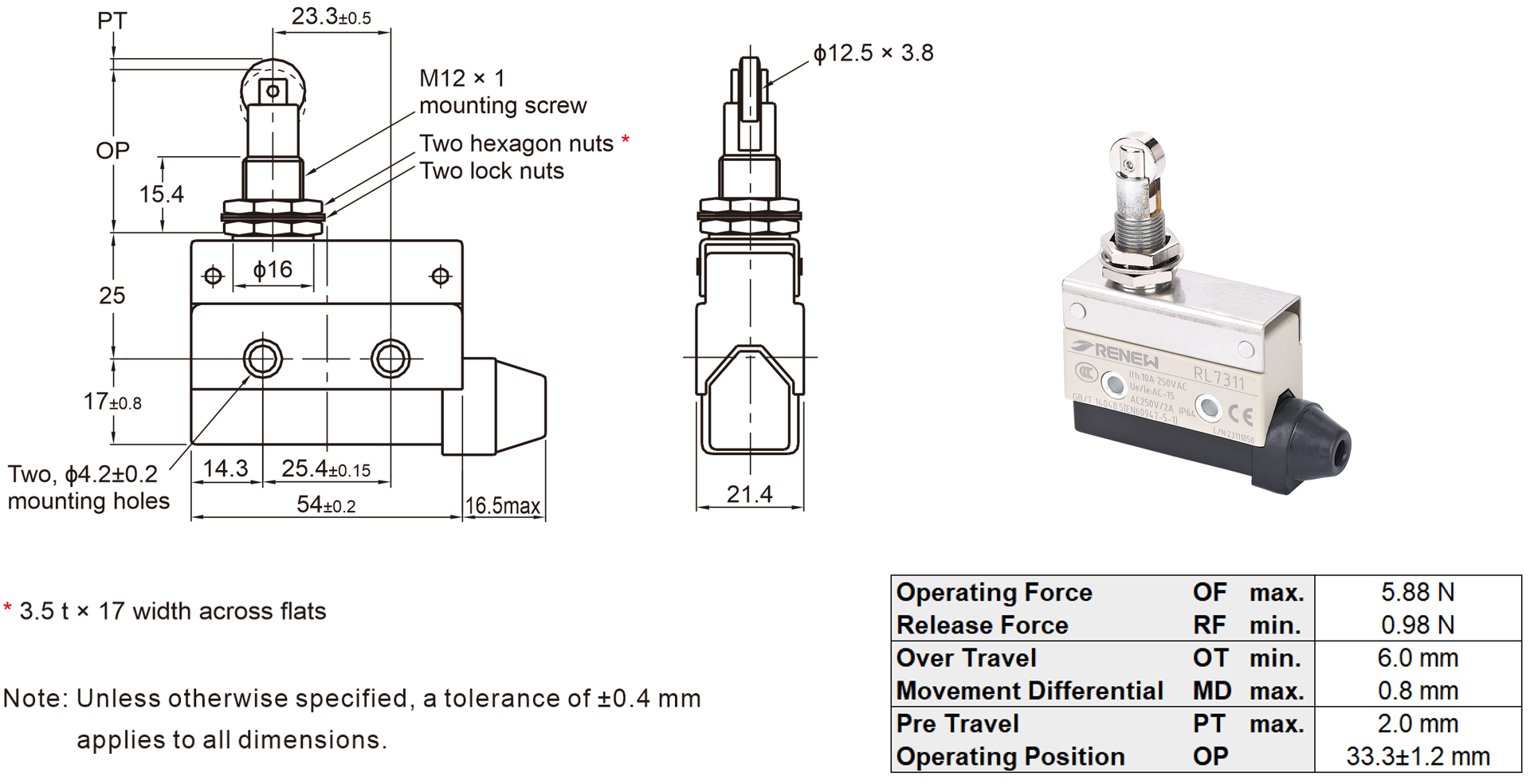

Dimensions and Operating Characteristics
General Technical Data
| Ampere rating | 10 A, 250 VAC |
| Insulation resistance | 100 MΩ min. (at 500 VDC) |
| Contact resistance | 15 mΩ max. (initial value for the built-in switch when tested alone) |
| Dielectric strength | Between contacts of same polarity
1,000 VAC, 50/60 Hz for 1 min |
| Between current-carrying metal parts and ground, and between each terminal and non-current-carrying metal parts
2,000 VAC, 50/60 Hz for 1 min |
|
| Vibration resistance for malfunction | 10 to 55 Hz, 1.5 mm double amplitude (malfunction: 1 ms max.) |
| Mechanical life | 10,000,000 operations min. (50 operations/min) |
| Electrical life | 200,000 operations min. (under the rated resistance load, 20 operations/min) |
| Degree of protection | General-purpose: IP64 |
Application
Renew’s horizontal limit switches play a critical role in ensuring the safety, precision, and reliability of various devices across different fields. Here are some popular or potential application.

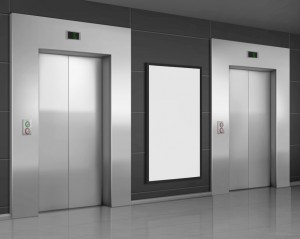

It is used to detect whether the elevator door is fully open or fully closed, and sends a signal to the control end of the elevator indicating which floor the elevator has reached, ensuring the normal operation of the elevator.
