Panel Mount Cross Roller Plunger Horizontal Limit Switch
-
Design Flexibility
-
Reliable Action
-
Enhanced Life
Product Description
The sturdy shell makes the Panel Mount Plunger Roller Horizontal Limit Switch more durable and capable of withstanding harsher and more severe environments. It has a mechanical life of up to ten million times, and it combines the advantages of panel design and roller design, making it applicable to more scenarios.

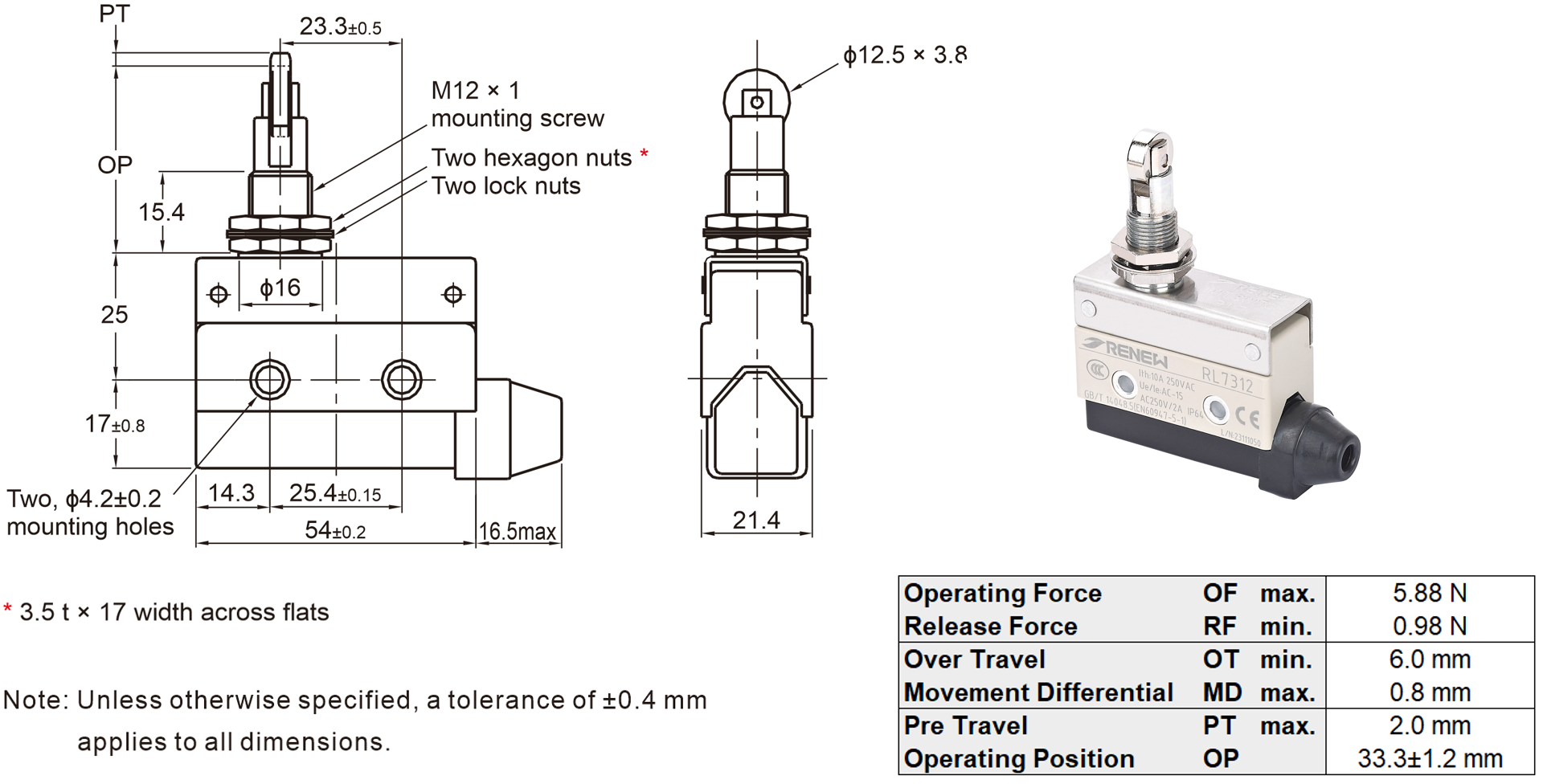

Dimensions and Operating Characteristics
| Ampere rating | 10 A, 250 VAC |
| Insulation resistance | 100 MΩ min. (at 500 VDC) |
| Contact resistance | 15 mΩ max. (initial value for the built-in switch when tested alone) |
| Dielectric strength | Between contacts of same polarity
1,000 VAC, 50/60 Hz for 1 min |
| Between current-carrying metal parts and ground, and between each terminal and non-current-carrying metal parts
2,000 VAC, 50/60 Hz for 1 min |
|
| Vibration resistance for malfunction | 10 to 55 Hz, 1.5 mm double amplitude (malfunction: 1 ms max.) |
| Mechanical life | 10,000,000 operations min. (50 operations/min) |
| Electrical life | 200,000 operations min. (under the rated resistance load, 20 operations/min) |
| Degree of protection | General-purpose: IP64 |
Application
Renew’s horizontal limit switches play a critical role in ensuring the safety, precision, and reliability of various devices across different fields. Here are some popular or potential application.
It is mainly applied in the elevator lifting system to sense whether the elevator door is fully open or tightly closed, and send the detected signal to the elevator control system. And during the operation, send floor signals to the control system to ensure the accurate parking of the elevator.
